230550 HydroCAD
Concept HydroCAD-230550 Type II 24-hr 2-yr Rainfall=3.60"
Prepared by Lane Engineering, LLC Printed 5/26/2025
HydroCAD® 10.00-17 s/n 03788 © 2016 HydroCAD Software Solutions LLC Page 7

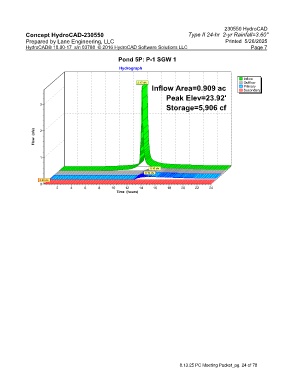

Pond 5P: P-1 SGW 1
Hydrograph

Inflow
3.17 cfs Outflow
Inflow Area=0.909 ac Primary
Secondary
Peak Elev=23.92'
3
Storage=5,906 cf

Flow (cfs) 2

1

0.10 cfs
0.10 cfs
0.00 cfs
0
2 4 6 8 10 12 14 16 18 20 22 24
Time (hours)
