230550 HydroCAD
            Concept HydroCAD-230550                                           Type II 24-hr  10-yr Rainfall=5.60"
            Prepared by Lane Engineering, LLC                                                   Printed  5/26/2025
            HydroCAD® 10.00-17  s/n 03788  © 2016 HydroCAD Software Solutions LLC                        Page 18

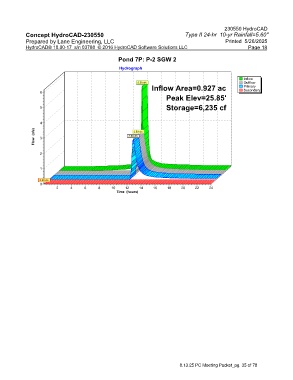

                                                  Pond 7P: P-2 SGW 2
                                                   Hydrograph

                                                                                                       Inflow
                                                           5.50 cfs                                    Outflow
                                                                Inflow Area=0.927 ac                   Primary
                                                                                                       Secondary
                  6
                                                                      Peak Elev=25.85'

                  5                                                   Storage=6,235 cf


                  4
               Flow  (cfs)  3                          2.59 cfs
                                                         2.59 cfs




                  2


                  1

                  0.00 cfs
                  0
                         2    4     6     8     10   12    14    16    18    20    22   24
                                                  Time  (hours)
