230550 HydroCAD
            Concept HydroCAD-230550                                          Type II 24-hr  100-yr Rainfall=8.10"
            Prepared by Lane Engineering, LLC                                                   Printed  5/26/2025
            HydroCAD® 10.00-17  s/n 03788  © 2016 HydroCAD Software Solutions LLC                        Page 25

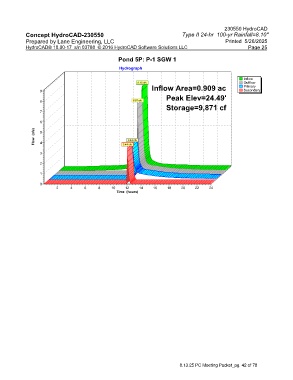

                                                  Pond 5P: P-1 SGW 1
                                                   Hydrograph

                                                                                                       Inflow
                                                           8.15 cfs                                    Outflow
                                                                Inflow Area=0.909 ac                   Primary
                  9                                                                                    Secondary
                                                                      Peak Elev=24.49'
                  8                                      6.87 cfs
                                                                      Storage=9,871 cf
                  7

                  6
               Flow  (cfs)  5 4                     3.44 cfs

                                                      3.44 cfs


                  3
                  2

                  1

                  0
                         2    4     6     8     10   12    14    16    18    20    22   24
                                                  Time  (hours)
