230550 HydroCAD
            Concept HydroCAD-230550                                          Type II 24-hr  100-yr Rainfall=8.10"
            Prepared by Lane Engineering, LLC                                                   Printed  5/26/2025
            HydroCAD® 10.00-17  s/n 03788  © 2016 HydroCAD Software Solutions LLC                        Page 27

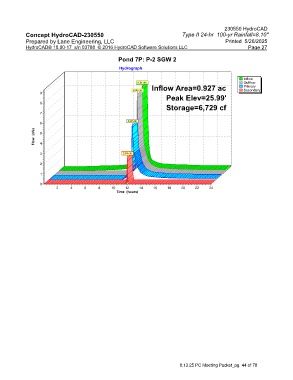

                                                  Pond 7P: P-2 SGW 2
                                                   Hydrograph

                                                                                                       Inflow
                                                           8.31 cfs                                    Outflow
                                                                Inflow Area=0.927 ac                   Primary
                                                         8.00 cfs                                      Secondary
                  9
                                                                      Peak Elev=25.99'
                  8
                                                                      Storage=6,729 cf
                  7
                                                      5.37 cfs
                  6
               Flow  (cfs)  5 4





                  3                                 2.63 cfs
                  2

                  1

                  0
                         2    4     6     8     10   12    14    16    18    20    22   24
                                                  Time  (hours)











































                                                                            8.13.25 PC Meeting Packet_pg. 44 of 78
